Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain

Name: Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain
Brand: SECORE
Price: 1 USD

Quality Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain for sale

Brand Name : SECORE

Model Number : SC3157-5840WG

Certification : ISO9001

Place of Origin : Shenzhen

MOQ : 100

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 100000pcs per month

Delivery Time : 10-12 working days

Packaging Details : 100pcs per carton or as request

No-load speed : 260rpm

Loaded Speed : 200rpm

Rated voltage : 24V

continuous current : 1.6A

No-load current : 0.2A

commutation : brush

Rated torque : 6.2kg.cm

loaded current : 1.6A

Stall torque : 18kg.cm

Stall current : 4.4A

Product Type : Worm Gear motor, dc brush reducer motor

Typical application : motorized curtain, Electric curtain

Contact Now

24V Permanent Magnet Dc Turbine Worm Gear Motor For Motorized Curtain

Main features:

Motor type: Brush commutated DC worm gear motor
Diameter of Gearbox: 58mm*40mm *27mm

DC 24.0V Worm gear motor
Reducer	Ratio	1:i	1:17	1:31	1:50	1:100	1:200	1:290	1:505	1:670
Reducer	Size L	mm	*L58W40H27*
No Load	Speed	rpm	470	260	160	80	40	27	16	12
No Load	Current	A	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2	≤0.2
Rated load	Speed	rpm	380	200	130	60	30	20	12	9
	Torque	Kgf.cm	3.4	6.2	10	20	40	60	70	70
	Current	A	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6	≤1.6
Stall	Torque	Kgf.cm	10	18	30	60	70	70	70	70
Stall	Current	A	4.4	4.4	4.4	4.4	4.4	4.4	4.4	4.4

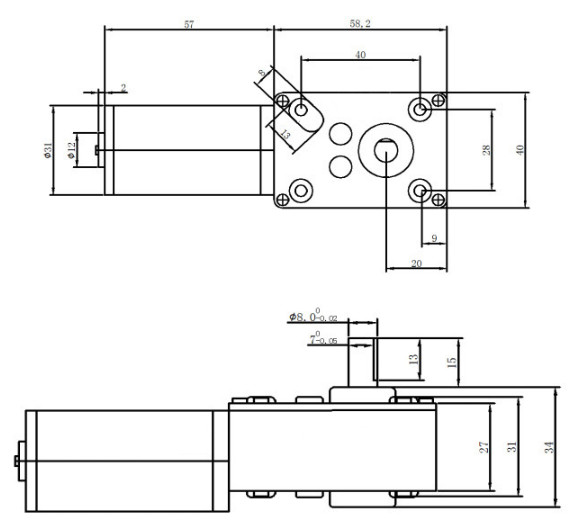

Gear motor dimensions:

Dc Turbine Worm Gear Motor 260rpm Permanent Magnet For Motorized Curtain
